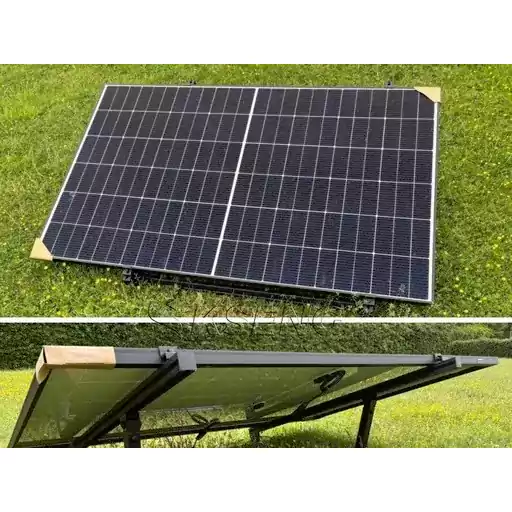

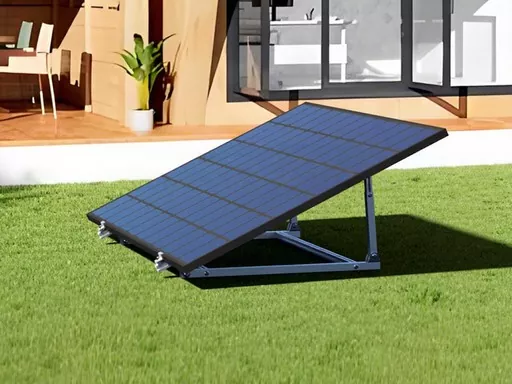

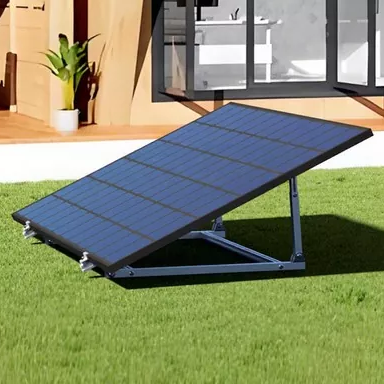

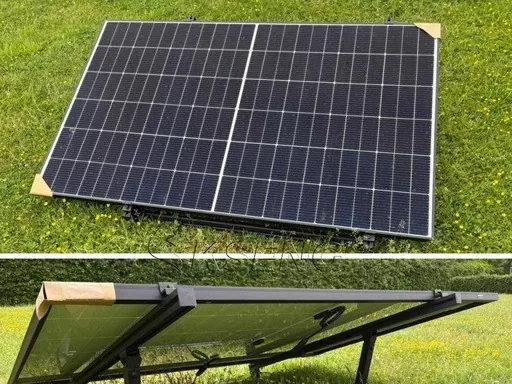

Balcony PV Bracket

Our Shunchen Balcony PV Bracket is a special supporting component specially developed and designed for balcony distributed photovoltaic systems. It is made of high-quality carbon steel such as Q235B and Q355B as the base material, and processed through multiple processes including CNC cutting, precision welding, and hot-dip galvanizing anti-corrosion treatment.

As a professional PV bracket manufacturer, we independently control the whole process from raw material selection to finished product delivery. The bracket structure is scientifically designed according to the balcony layout and the weight of PV modules, combining high-strength load-bearing performance and long-term anti-corrosion capability. It can be directly fixed on the balcony guardrail or wall to quickly build an installation platform for PV modules, realizing efficient conversion of solar energy.

It is suitable for various scenarios including urban residential balconies, villa terraces, and apartment corridors, making it an ideal supporting product for distributed photovoltaic projects.

Core Advantages & Selling Points

Superior Load-Bearing Capacity & Wind Resistance

Shunchen Balcony PV Bracket adopts a mechanically optimized structural design, with the main beam and diagonal braces bearing force collaboratively. It can carry a single PV module with a power of over 500W, with a wind resistance grade up to Level 12 and snow load resistance ≥0.5kN/㎡. It can maintain structural stability even in extreme weather such as typhoons and blizzards, eliminating the risk of module falling off.

Long-Lasting Corrosion Resistance for Outdoor Durability

The surface of the bracket is treated by a fully automatic hot-dip galvanizing process, with a uniform coating thickness ≥85μm and strong adhesion. It has passed the 180° bending test without peeling off, and the Neutral Salt Spray (NSS) test duration is ≥500 hours. It can effectively resist the erosion of outdoor humidity, sunlight, acid rain and other harsh factors on the balcony, with a service life of more than 20 years, without frequent maintenance and replacement.

Quick & Easy Installation, Labor & Time Saving

The bracket adopts a modular design, pre-assembled before delivery, and matched with special fastening accessories. No welding is required for on-site installation, and the fixing can be completed only with a wrench. One set of PV system brackets can be installed by 1-2 people within 2 hours, which greatly shortens the construction cycle and reduces labor costs.

Flexible Customization & Wide Compatibility

We can customize the size and angle of the bracket according to different balcony layouts (bay balcony, recessed balcony, corner balcony) and PV module specifications (size, weight). It supports 0-30° tilt angle adjustment to maximize solar energy reception efficiency and meet the personalized installation needs of different users.

High Cost-Effectiveness & Stable Supply

We have our own production lines and warehouses, with no intermediate links in the bracket production, so the price is more advantageous than similar products of peers. We keep regular stock of conventional specifications, bulk orders can be shipped within 72 hours, and urgent orders are prioritized for production on demand to ensure the on-time implementation of PV projects.

Technical Specifications

Applications & Successful Projects

1 Main Application Scenarios

Our Shunchen Balcony PV Bracket is corely suitable for distributed photovoltaic power generation scenarios, including: urban residential balcony PV projects, villa terrace PV systems, apartment corridor PV renovation projects, and commercial apartment batch PV installation projects. It can effectively utilize the idle space of the balcony to realize self-use of photovoltaic power generation and feed excess electricity into the grid, helping users reduce electricity costs.

2 Typical Successful Project

Project: Batch Balcony PV Installation Project for a Urban Residential CommunityWe supplied customized Shunchen Balcony PV Brackets (specification: main beam 1500×100×2.5mm, tilt angle 15°) for 500 homeowners in a new urban residential community, which are used with 450W PV modules. The bracket adopts guardrail clamping installation, no need to damage the balcony structure, and the installation efficiency is increased by 50%.

After 1 year of outdoor use verification, the bracket has no rust or deformation, the wind resistance performance meets the standard, and the power generation efficiency of the PV system is stable, which has been highly recognized by homeowners and property management.

Certifications & Quality Assurance

As a manufacturer focusing on the R&D and production of PV brackets, we always control the quality of Shunchen Balcony PV Brackets with strict standards and provide a full-chain quality assurance:

Qualification Certification: We have passed ISO 9001 Quality Management System Certification and ISO 14001 Environmental Management System Certification. Our products comply with the relevant national technical standards for PV brackets, and can provide SGS third-party mechanical performance test reports and anti-corrosion performance test reports.

Production Control: We have fully automatic CNC cutting and welding production lines, adopting on-line welding flaw detection technology to ensure firm and defect-free welding of the brackets. The galvanizing link adopts real-time zinc bath temperature monitoring to ensure the uniformity and adhesion of the coating.

Quality Control & Inspection: Before each batch of brackets leaves the factory, they are subjected to load-bearing test, wind resistance simulation test, coating thickness test and surface quality inspection. A complete quality traceability file is established to ensure 100% qualification rate of the delivered products.

Competitive Advantages & Why Choose Shunchen?

Choosing us means choosing high-quality, cost-effective Shunchen Balcony PV Brackets and a worry-free full-process service. We independently control the whole process from raw materials to finished products, which can not only ensure that the bracket's wind resistance, compression resistance, anti-corrosion and durability performance meet the standards, but also help your PV projects be implemented efficiently with shorter delivery time and better prices. We are your reliable partner for distributed photovoltaic projects.

Frequently Asked Questions (FAQ)

Q: What is the maximum load-bearing capacity of Shunchen Balcony PV Bracket?

A: The load-bearing capacity of our brackets varies according to specifications. The conventional Q355B material main beam (1500×100×2.5mm) can stably carry a single 550W PV module, with a rated load ≥50kg/㎡. Meanwhile, it meets the requirements of Level 12 wind resistance and 0.5kN/㎡ snow load resistance. We can provide professional selection suggestions according to the weight of your PV modules.

Q: How to choose the right bracket for balconies of different layouts?

A: For bay balconies, guardrail clamping brackets are preferred, no need to drill holes and damage the wall; for recessed balconies or narrow balconies, wall-mounted brackets can be selected to save space; for corner balconies, L-shaped special-shaped brackets can be customized to make full use of the corner space. We will give the optimal installation scheme according to your balcony size and layout drawing.

Q: Can you provide Shunchen Balcony PV Brackets with anti-corrosion treatment?

A: Yes. Our brackets are treated with hot-dip galvanizing anti-corrosion by default, with a coating thickness ≥85μm and NSS test duration ≥500 hours, which fully meets the anti-corrosion requirements of outdoor balconies. At the same time, we can customize electrostatic spraying treatment on demand, supporting a variety of color options to match the building appearance.

Q: Can you provide on-site acceptance and transportation assistance for large order procurement?

A: Yes. For bulk orders of more than 100 sets, we can invite customers to our factory for on-site product quality acceptance. At the same time, we provide exclusive logistics docking services and coordinate special vehicle transportation to ensure that the bracket products are delivered to the project site safely and on time.
